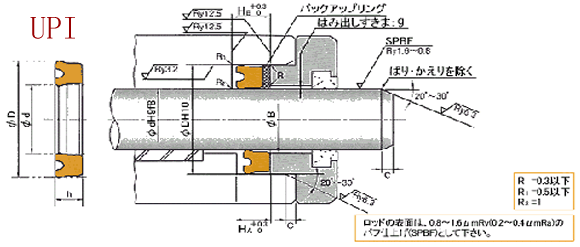

密封圈-密封件-活塞孔軸通用密封 UPI

密封件尺寸			溝槽尺寸						NOK 訂貨號
d	D	h	φd	φD	φD1	HA	HB	C	NOK 訂貨號
6.3	16.3	8	6.3	16.3	15.3	9	11	2.5	FU0024D0
7.1	17.1	8	7.1	17.1	16.1				FU0030D0
8	18	8	8	18	17				FU0043D0
9	19	8	9	19	18				FU0054D0
10	20	8	10	20	19				FU0069D0
11.2	21.2	8	11.2	21.2	20.2				FU0081D0
12	25	8	12	25	24				FU0093D0
12.5	22.5	8	12.5	22.5	21.5				FU0102D0
14	24	8	14	24	23				FU0122D0
15	25	8	15	25	24				FU0135D0
16	26	8	16	26	25				FU0157D0
16	32	10	16	32	31	11	13		FU0161D0
18	28	8	18	28	27	9	11	3.5	FU0182D0
18	31	10	18	31	30	11	13		FU0186D0
20	30	8	20	30	29	9	11		FU0215D0
	33	10	20	33	32	11	13		FU0221D0
	35	10	20	35	34	11	13		FU0224D0
21.5	31.5	8	21.5	31.5	30.5	9	11		FU0239D0
22	32	8	22	32	31	9	11		FU0246D0
22	35	10	22	35	34	11	13		FU0249D0
22.4	30	5	22.4	30	29	5.7	7.7		FU0260D0
22.4	32.4	8	22.4	32.4	31.4	9	11		FU0263D0
25	35	8	25	35	34				FU0282D0
	38	8	25	38	37				FU0287D0
	40	10	25	40	39	11	13		FU0292D0
	45	12	25	45	44	13	15		FU0301D0
25.5	35.5	8	25.5	35.5	34.5	9	11		FU0309D1
28	35.5	5	28	35.5	34.5	5.7	8.7		FU0320D1
	40	10	28	40	39	11	14		FU0330D0
	43	10	28	43	42				FU0340D0
30	45	10	30	45	44				FU0368D0
30	46	10	30	46	45				FU0369D0
31.5	46.5	10	31.5	46.5	45.5				FU0387D0
32	46	10	32	46	45			4	FU0403D0
35	50	10	35	50	49				FU0437D0
35.5	45	6	35.5	45	44	7	10		FU0451D0
35.5	50.5	10	35.5	50.5	49.5	11	14		FU0456D0
38	52	10	38	52	51				FU0470D0
40	55	10	40	55	54				FU0505D0
	56	10	40	56	55				FU0508D0
	60	12	40	60	59	13	16		FU0514D0
41	56	10	41	56	55	11	14		FU0523D0
45	56	7	45	56	55	8	11		FU0572D1
	60	10	45	60	59	11	14		FU0577D0
	61	10	45	61	60				FU0579D0
46	60	10	46	60	59				FU0588D0
48	63	10	48	63	62				FU0601D0
50	65	10	50	65	64				FU0631D0
	66	12	50	66	65	13	16		FU0635D0
	70	12	50	70	69				FU0639D0
51	71	12	51	71	70				FU0669D0
53	73	12	53	73	72				FU0683D0
55	71	12	55	71	70				FU0704D0
	75	12	55	75	74				FU0708D0
	80	15	55	80	79	16	19		FU0712D0
56	72	12	56	72	71	13	16		FU0727D0
56	76	12	56	76	75				FU0728D0
58	78	12	58	78	77				FU0736D0
60	71	7	60	71	70	8	11		FU0750D0
60	80	12	60	80	79	13	16		FU0761D0
62	82	12	62	82	81				FU0777D0
63	83	12	63	83	82				FU0793D0
65	85	12	65	85	84			5	FU0819D0
67	87	12	67	87	86				FU0831D0
70	90	12	70	90	89				FU0862D0
71	80	6	71	80	79	7	10		FU0879D1
71	91	12	71	91	90	13	16		FU0884D0
75	95	12	75	95	94				FU0910D0
80	100	12	80	100	98				FU0948D0
80	100	15	80	100	98	16	19		FU0949D0
85	100	9	85	100	98	10	13		FU0984D1
85	105	12	85	105	103	13	16		FU0989D0
90	110	12	90	110	108				FU1030D0
92	112	12	92	112	110				FU1042D0
95	115	12	95	115	113				FU1056D0
95	120	15	95	120	118	16	19		FU1061D0
98	112	9	98	112	110	10	13		FU1068D0
100	120	12	100	120	118	13	16		FU1089D0 ※
100	125	15	100	125	123	17	20		FU1096D0
105	125	15	105	125	123	17	20		FU1129D0
106	120	8.5	106	120	118	9.5	12.5		FU1135D1
106	126	15	106	126	124	17	20		FU1138D0
110	130	15	110	130	128				FU1165D0
112	132	15	112	132	130				FU1182D0
115	135	15	115	135	133				FU1198D0
118	132	9	118	132	130	10	13		FU1932D0
118	138	15	118	138	136	17	20		FU1207D0
120	140	15	120	140	138				FU1224D0
125	145	15	125	145	143				FU1257D0
130	150	15	130	150	148			6.5	FU1284D0
132	152	15	132	152	150				FU1292D0
135	155	15	135	155	153				FU1305D0
136	150	9	136	150	148	10	13		FU1933D0
140	160	15	140	160	158	17	20		FU1327D0
140	165	15	140	165	163				FU1330D0
145	165	15	145	165	163				FU1344D0
150	170	15	150	170	168				FU1363D0
150	175	15	150	175	173				FU1365D0
155	180	15	155	180	178		21		FU1391D0
160	185	15	160	185	183				FU1413D0
165	190	15	165	190	188				FU1431D0
170	195	15	170	195	193				FU1448D0
175	200	15	175	200	198				FU1461D0
180	205	15	180	205	203				FU1490D0
185	210	15	185	210	208				FU1504D0
190	215	15	190	215	213				FU1519D0
199	224	15	199	224	222				FU1532D0
200	225	15	200	225	223				FU1547D0
200	225	18	200	225	223	20	24		FU1549D0
205	235	18	205	235	233				FU1565D0
210	235	18	210	235	233				FU1579D0
212	237	18	212	237	235				FU1584D0
220	245	18	220	245	243				FU1599D0
224	249	18	224	249	247				FU1612D0
225	250	18	225	250	248				FU1625D0
230	254	18	230	254	252				FU1639D0
230	255	18	230	255	253				FU1641D0
236	261	18	236	261	259				FU1648D0
240	265	18	240	265	263				FU1662D0
250	275	18	250	275	273				FU1682D0
260	290	18	260	290	288			8	FU1706D0
265	295	18	265	295	293				FU1713D0
270	300	18	270	300	298				FU1722D0
280	310	18	280	310	308				FU1735D0
290	320	18	290	320	318				FU1750D0
300	330	18	300	330	328				FU1764D0
